Mô tả

1. Applications:

• Used in cleanrooms, laboratories, electronics manufacturing, pharmaceuticals, and medical environments to deliver clean, filtered air.

• Designed for ceiling or wall installation, generating laminar or turbulent airflow depending on system design.

2. Construction:

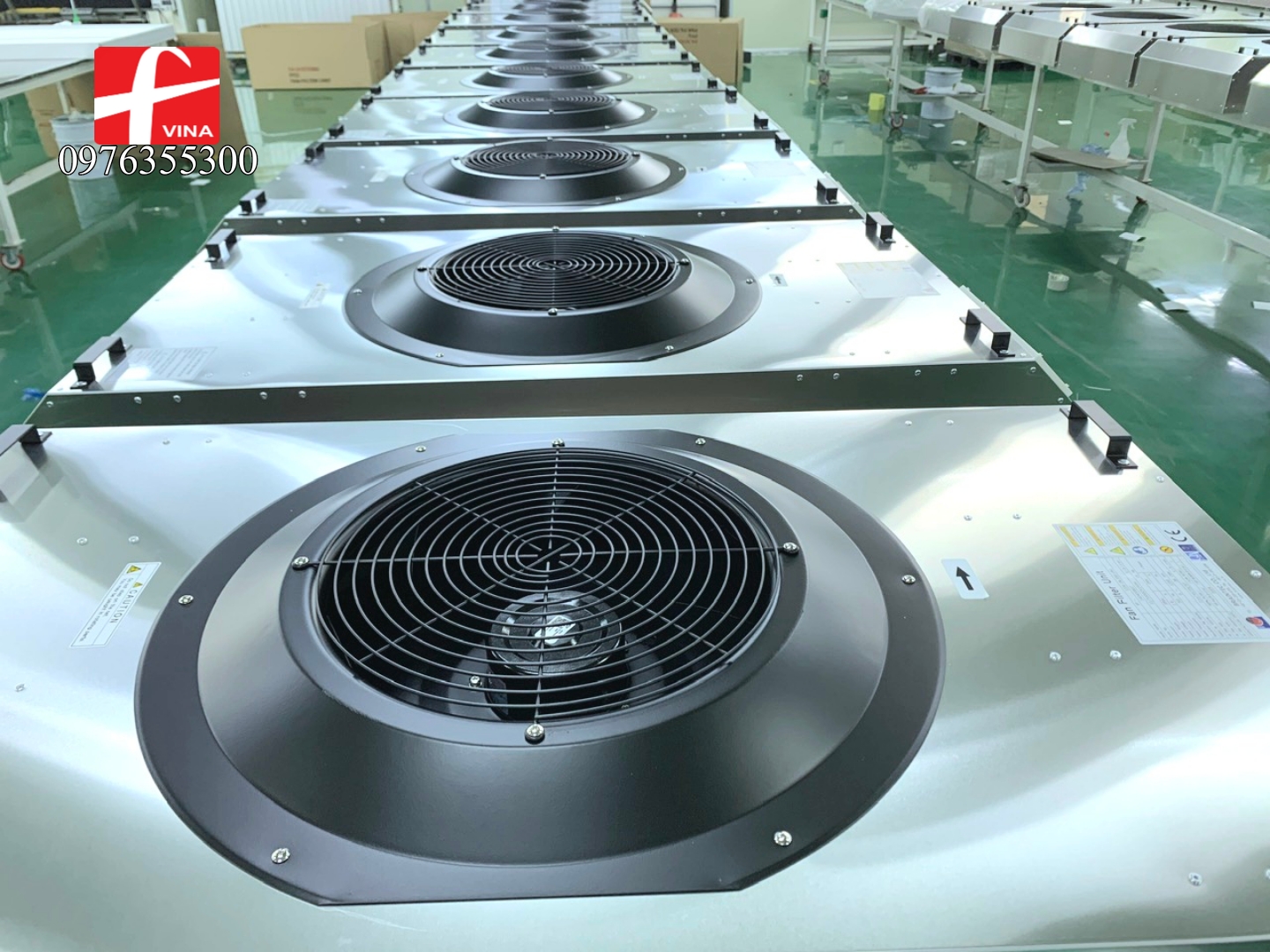

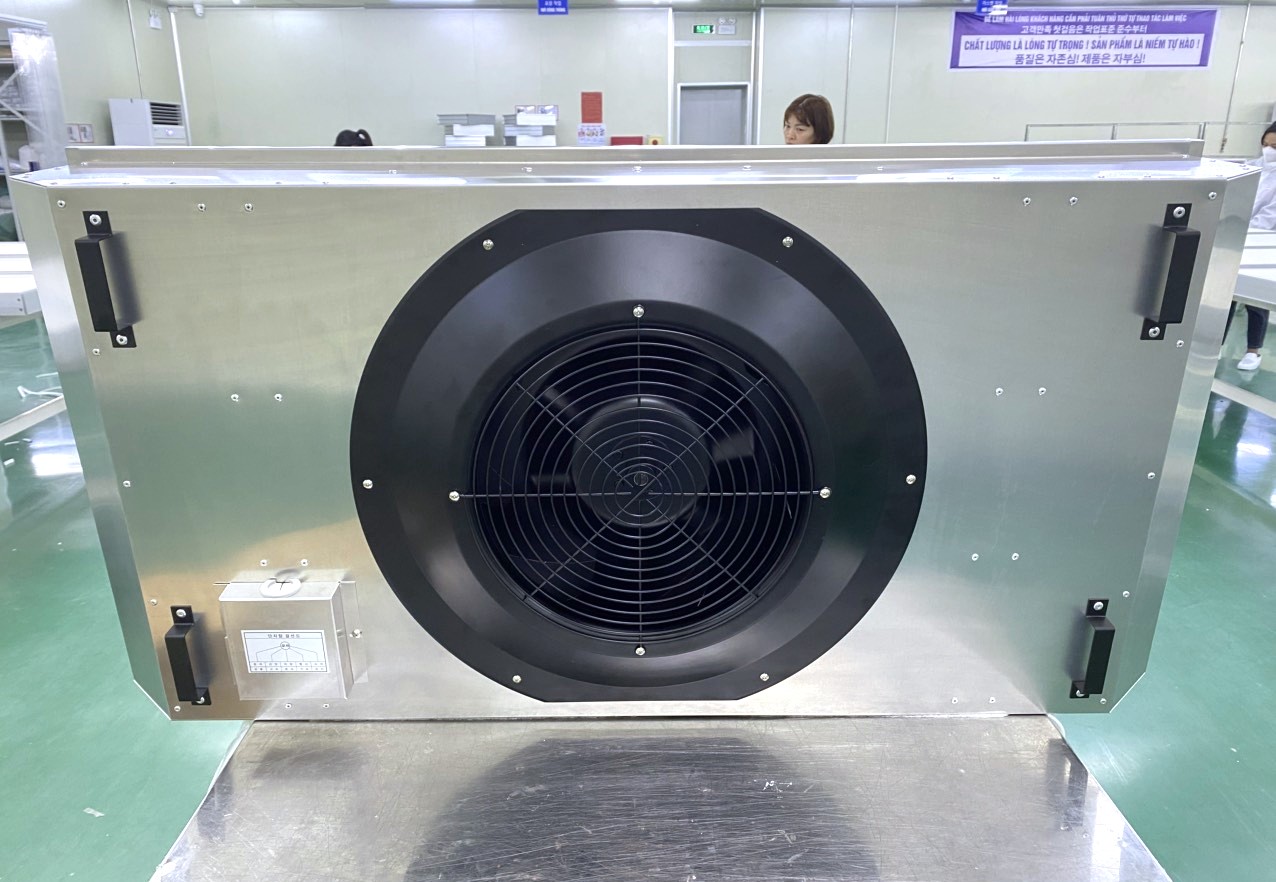

• Fan (AC Motor): Provides airflow pressure through the filter media.

• HEPA/ULPA Filter: Captures fine dust particles, bacteria, and airborne contaminants.

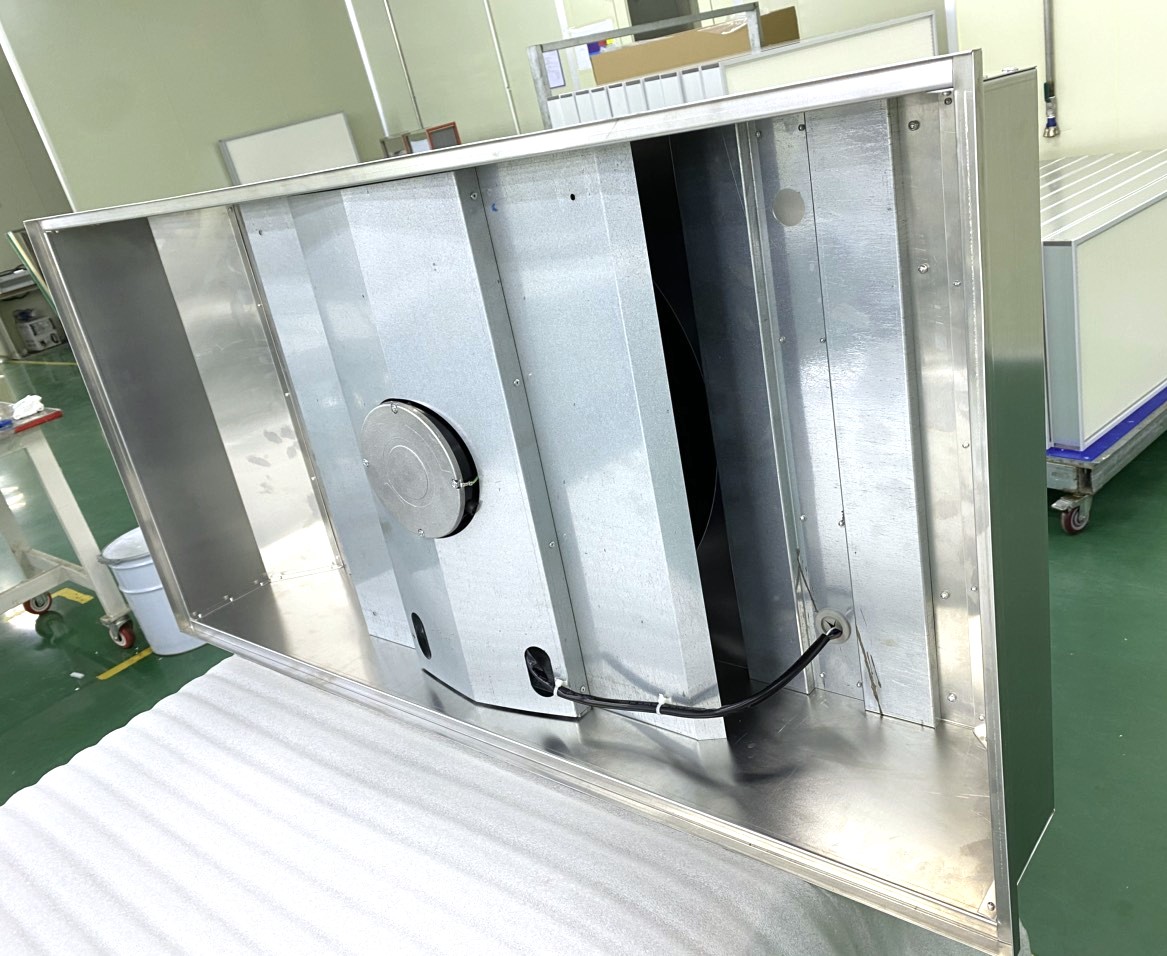

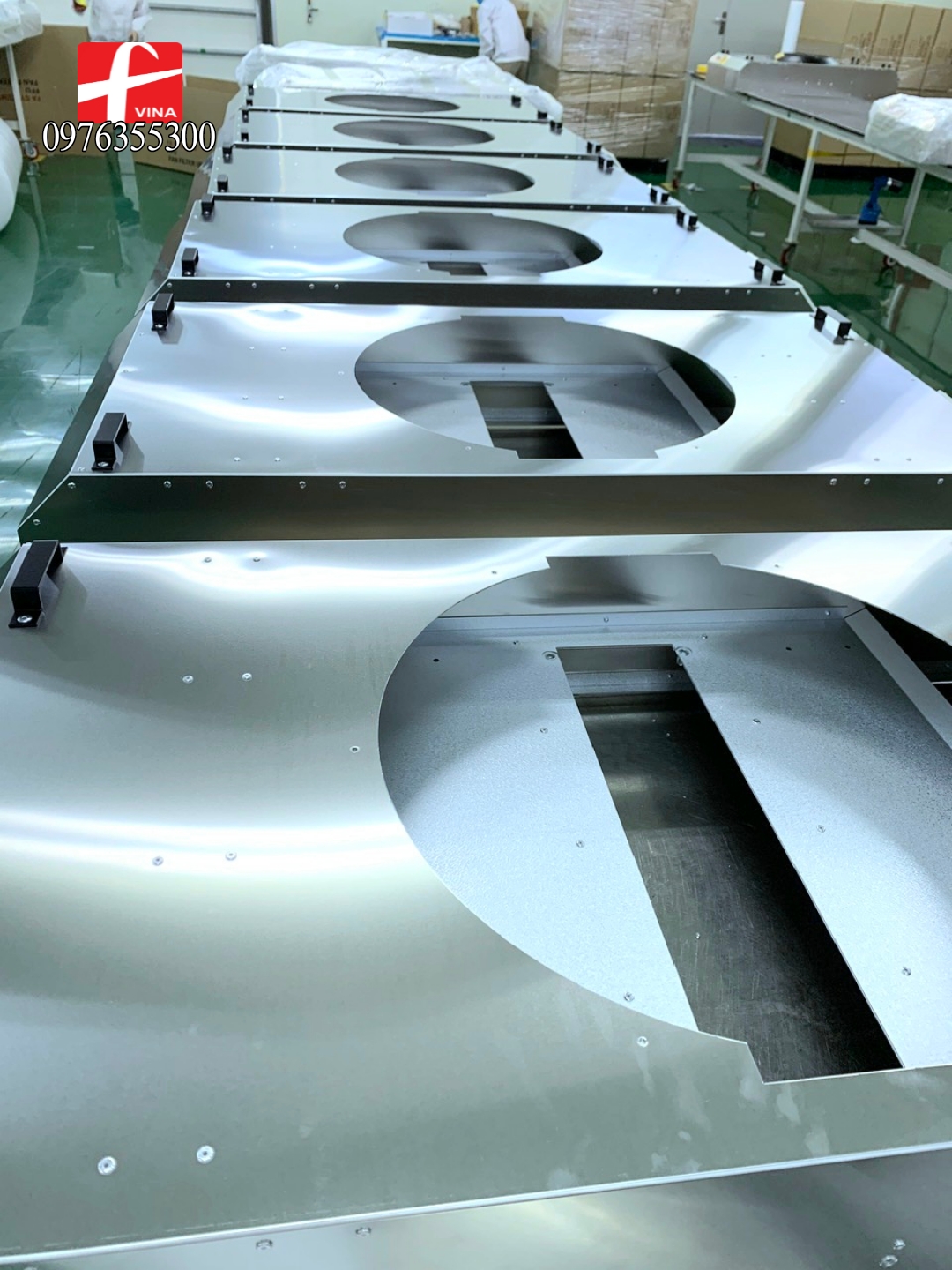

• Housing (Enclosure): Made of stainless steel or powder-coated steel; compact and easy to install.

3. Common Dimensions:

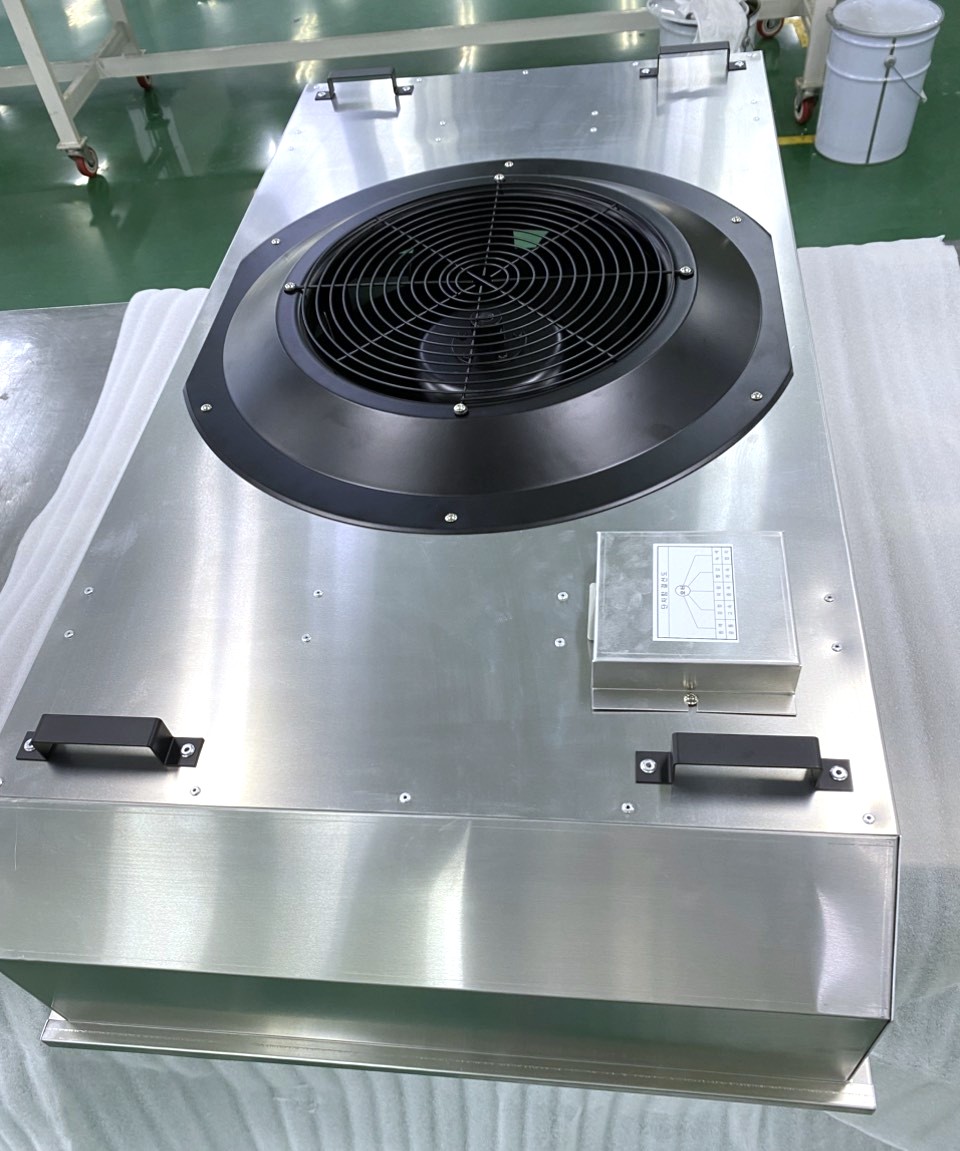

➤ Housing (Fan Unit) Size:

• 1175 × 585 × 190 mm
  (Overall size including fan, housing, and controller)

➤ Filter Size (inside the FFU):

• 572 × 1172 × 75 mm
  (Optional: 610 × 610 × 75 mm, 610 × 610 × 150 mm, etc. depending on system requirements)

⚙️ Both fan housing and filter dimensions can be customized according to client requirements and ceiling grid size.

4. Technical Specifications (Sample):

• Rated Voltage: 220V / 230V

• Rated Current: 0.6A (220V) / 1A (230V)

• Frequency: 50Hz / 60Hz

• Revolutions per Minute (RPM): 0 ~ 900 RPM

• Rated Air Volume: 18 CMM (~1080 m³/h)

• Weight: Approx. 17–19 kg

• Frame Material: Stainless steel or powder-coated steel

5. Key Advantages:

• High filtration efficiency: Equipped with HEPA filters (H13–H14) to remove >99.99% of airborne particles.

• Stable airflow & low noise: Reliable performance with minimal disruption.

• Compact & modular: Easy to install, replace filters, and integrate into ceiling grids.

• Energy efficient: Low power consumption with optimized fan performance.

• Customizable: Supports different filter types, motors, and control options.
