Mô tả

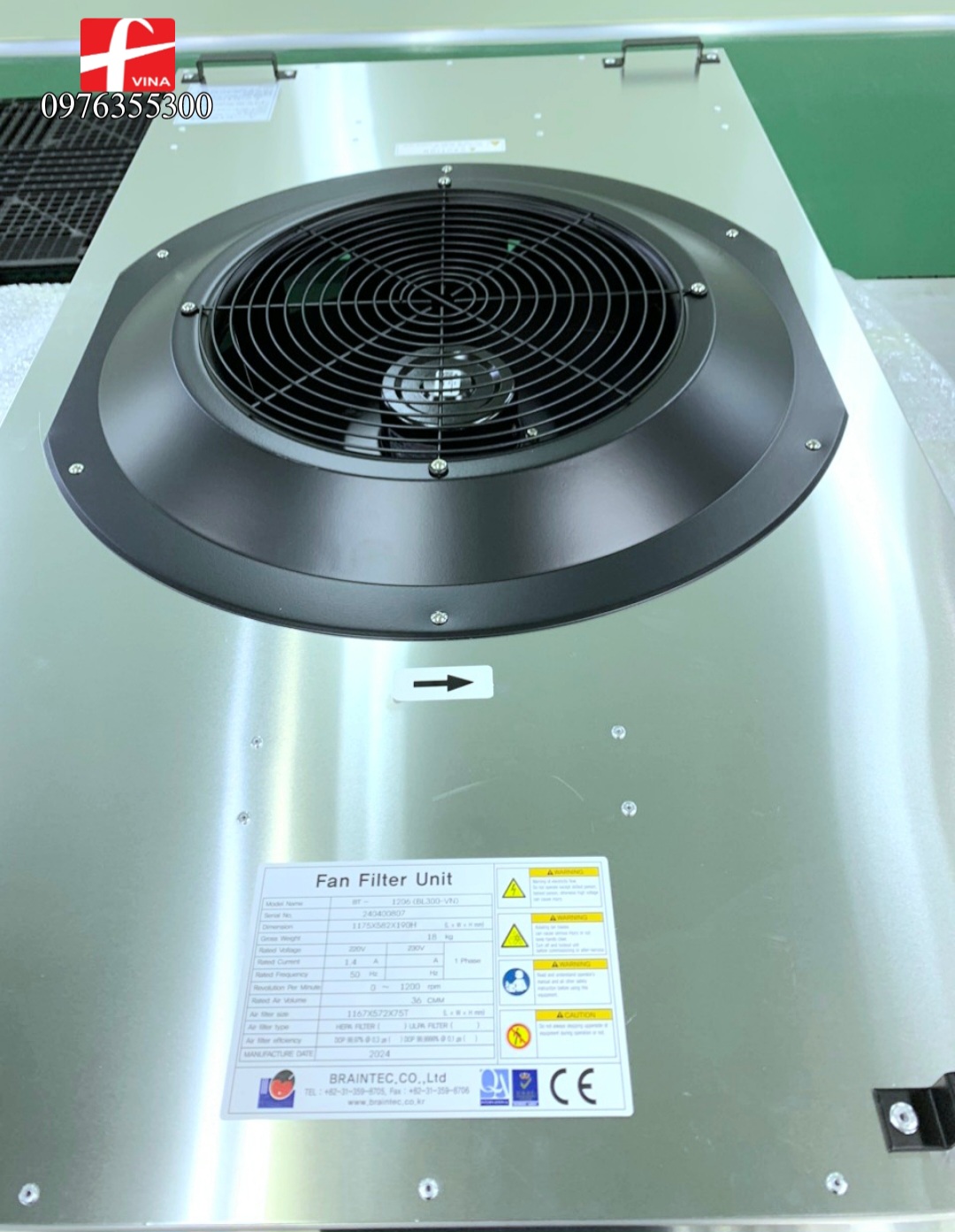

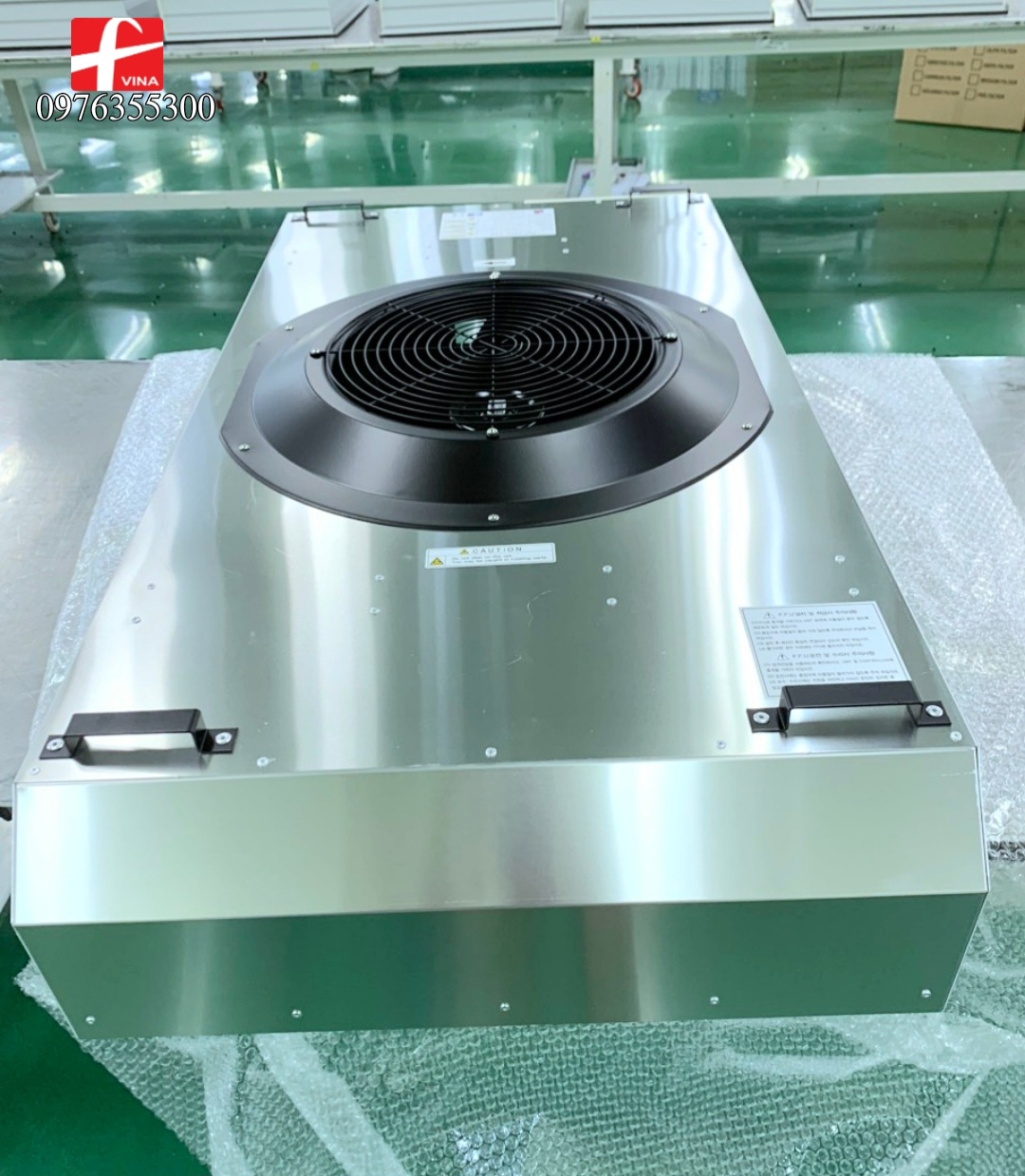

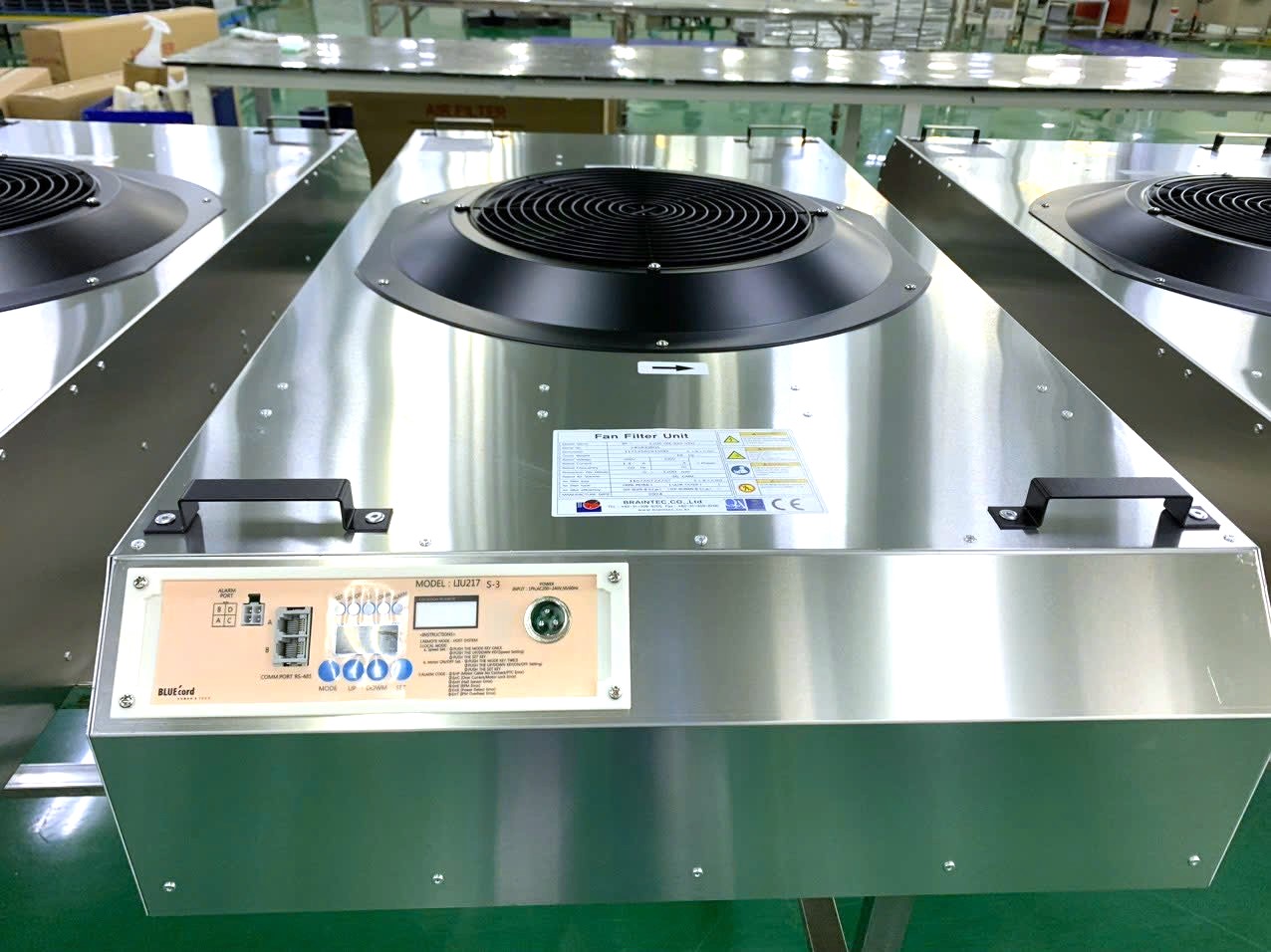

1. Application: Fan Filter Unit (BLDC Type) is used in cleanrooms, labs, and controlled environments. It combines a high-efficiency fan and HEPA/ULPA filter to provide filtered air and maintain cleanliness. The BLDC motor offers stable operation, longer lifespan, and precise speed control.

2. Specifications:

• Model: BT-1206 (BL300-VN)

• Overall Dimensions (L×W×H): 1175 × 582 × 190 mm

• Casing Weight: ~17–19 kg

• Filter Size: 1167 × 572 × 75 mm

• Air Volume: 36 CMM

• Rated Voltage: 220V / 230V

• Rated Current: 1.4A

• Frequency: 50 Hz

• Motor Type: Brushless DC (BLDC)

• RPM: 0 ~ 1200 rpm

• Filter Type: HEPA (DOP 99.97%@0.3μm) / ULPA (DOP 99.999%@0.1μm)

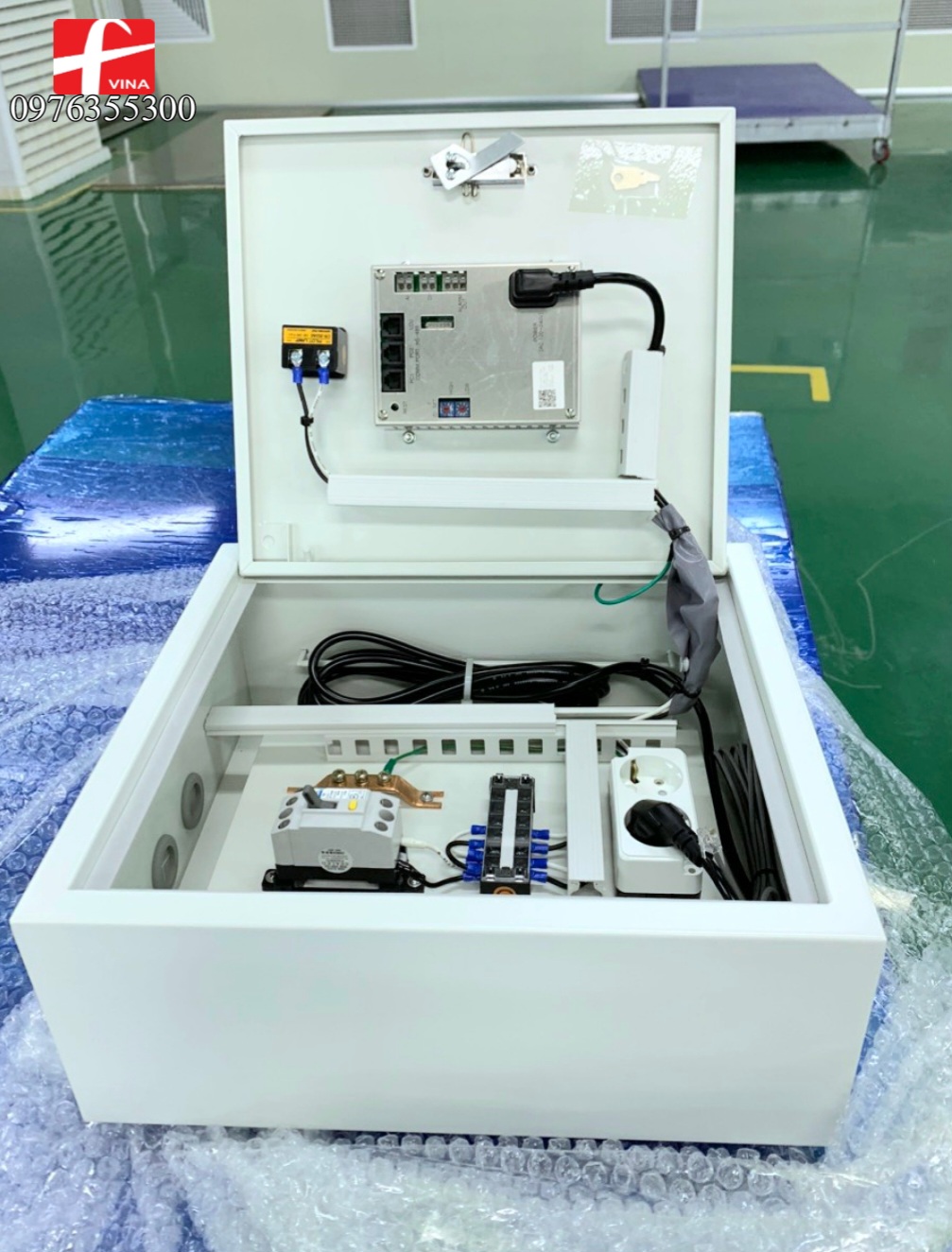

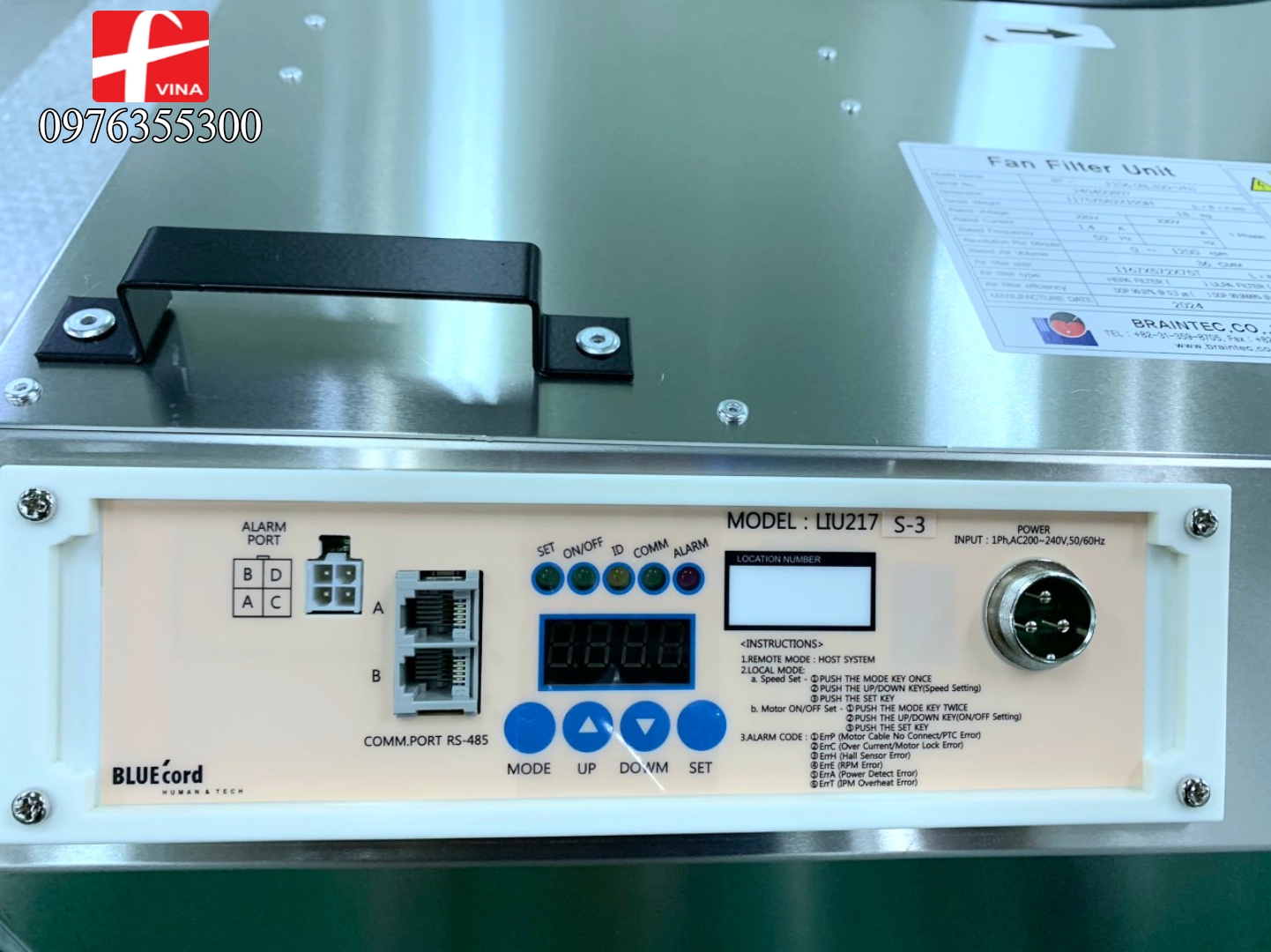

• Control Panel: Digital controller with RPM and alarm monitoring (RS-485 communication available)

• Manufacture Year: 2024

• Size customization: Available upon request

3. Advantages:

• High precision motor control with low noise

• Long lifespan and energy-saving operation

• Built-in digital controller for easy monitoring and adjustment

• Compatible with HEPA/ULPA filters

• Suitable for cleanrooms, electronics manufacturing, pharmaceuticals, and hospitals
