Mô tả

1. Applications:

String wound filter cartridges are widely used in:

• Residential and industrial water filtration.

• Pre-filtration for RO and UF systems.

• Food & beverage, cosmetic, pharmaceutical, and electronics industries.

• Well water, wastewater, and process water treatment.

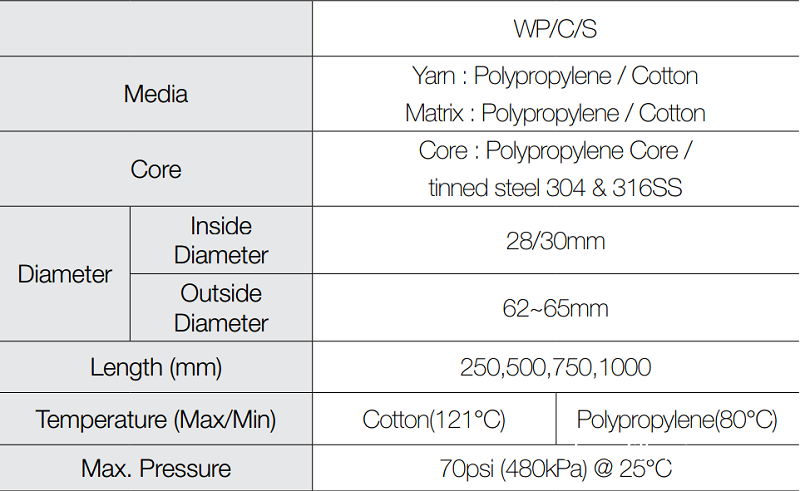

2. Technical Specifications:

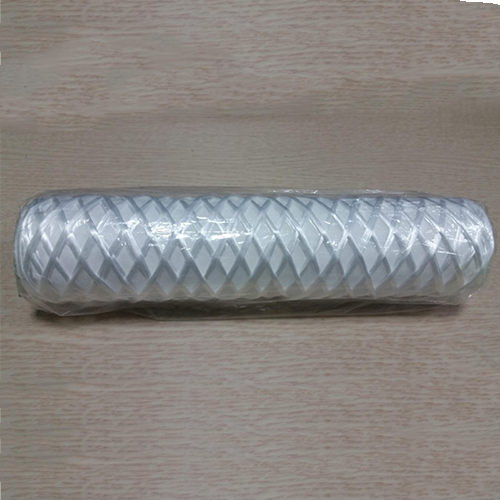

• Construction: Fibers (polypropylene or cotton) are tightly wound around a core (plastic or stainless steel) in a spiral pattern.

• Outer Diameter (OD): 63 – 65 mm | Inner Diameter (ID): 28 – 30 mm

• Length: 10”, 20”, 30”, 40” (customizable).

• Micron Ratings: 1, 5, 10, 25, 50 micron.

• Working Pressure: Up to ~6 bar.

• Operating Temperature: Up to 60°C (depending on material).

• Material: PP, cotton, or synthetic fiber (can be used for hot water or mild chemicals).

• Size: Customizable based on customer specifications.

3. Advantages:

• • High filtration efficiency with a gradient density from outer to inner layers.

  • Effectively removes sediments, rust, dirt, and suspended particles.

  • Cost-effective and easy to replace.

  • Ideal for pre-filtration and protecting downstream systems.
